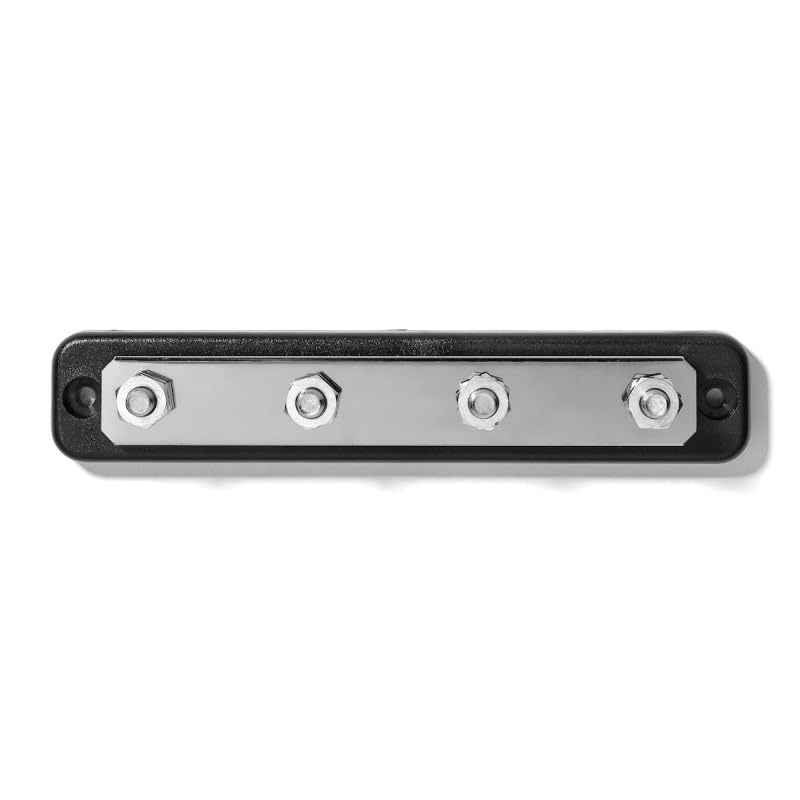

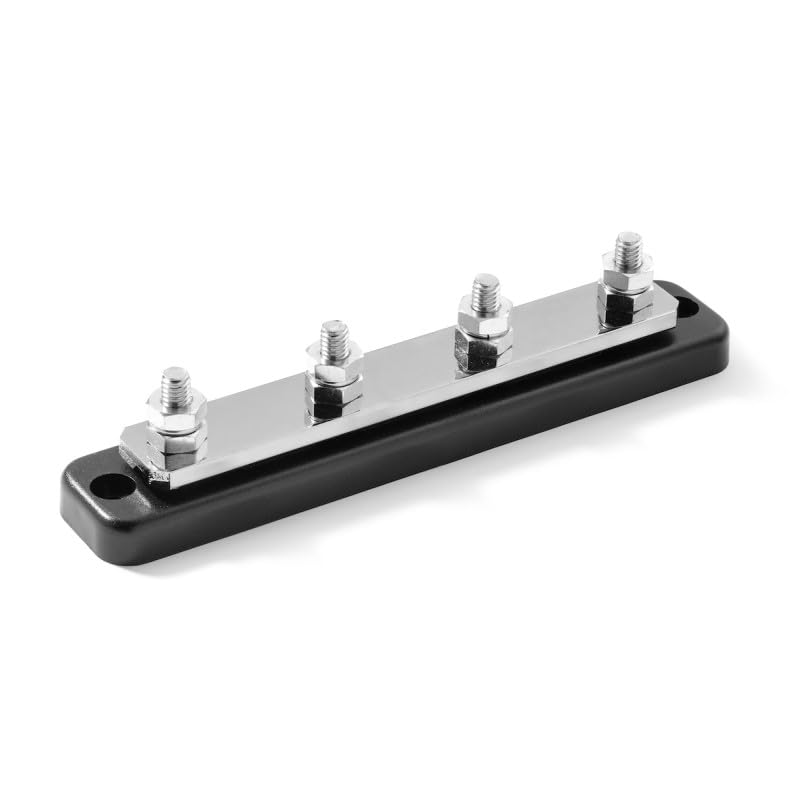

Spartan Power Heavy-Duty Busbars - 250A 4 Terminal High Current Power Distribution Block with Spartan Power Clear Cover- Copper Tin-Plated - Ideal for 12V, 24V, 48V DC Systems

Spartan Power Heavy-Duty Busbars – Reliable Power Distribution Solution for High-Amperage DC Systems - When it comes to dependable power distribution, Spartan Power Heavy-Duty Busbars are the gold standard. Engineered for rugged use, these busbars provide efficient and stable power distribution for high-amperage 12V, 24V, and 48V DC systems, making them ideal for a range of applications, from off-grid solar setups to marine and RV electrical systems. Max. current rating: 250 A Max. Voltage rating: 70 VDC Terminal diameter: 5/16 inch / 8 mm Terminal height: 0.67 inch / 17 mm Terminal material: Stainless steel Hex nut material: Tin-plated copper Recommended torque: 110 lbf·inch / 13 N·m Busbar strip material: Tin-plated copper (5 x 24 mm) Base material: ABS, black, UL 94 V-0 Cover material: ABS, black, UL 94 V-2 Weight, 4 terminals: 0.5 lbs / 0.24 kg Dimensions H x W x D (with cover): 1.9 x 9.4 x 2.8 inch / 48 x 237 x 70 mm Weight, 6 terminals: 1.0 lbs / 0.43 kg Dimensions H x W x D (with cover): 1.9 x 9.4 x 2.8 inch / 48 x 237 x 70 mm

• High Current Capacity: Designed to handle up to 600A at 70V DC, ensuring reliable performance for demanding power distribution needs.
• Multiple Terminal Options: Available in configurations with 4, 6, or 8 high-current terminals, providing flexibility for various wiring requirements.
• Durable Construction: Constructed with tin-plated copper busbars and stainless steel terminals, offering excellent conductivity and corrosion resistance.
• Protective Cover Included: Each busbar comes with a removable ABS plastic cover, enhancing safety by preventing accidental contact with live terminals.
• Versatile Voltage Compatibility: Suitable for use in 12V, 24V, and 48V DC systems, making it ideal for a wide range of applications, including automotive, marine, and renewable energy installations.
